Volvo Construction Equipment Adds New EC380E Straight Boom Excavator to its Purpose-Built Demolition Tool Lineup

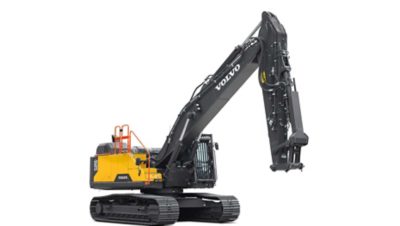

Volvo CE is adding to its demolition lineup with the new 38-ton EC380E Straight Boom excavator, which replaces the traditional boom-and-stick approach with a 23-foot straight boom and purpose-built arm. This custom-built excavator offers a significant height advantage over standard models along with outstanding reach, stability, cab protections and durability, making it an ideal choice for those working in tough demolition applications.
At 23 feet (7 m), the Volvo EC380E Straight Boom provides much higher reach while maintaining superior stability and lifting capabilities, making it well suited for demanding demolition jobs.

Volvo CE is adding to its demolition lineup with the new 38-ton EC380E Straight Boom excavator, which replaces the traditional boom-and-stick approach with a 23-foot straight boom and purpose-built arm. This custom-built excavator offers a significant height advantage over standard models along with outstanding reach, stability, cab protections and durability, making it an ideal choice for those working in tough demolition applications.

“When our customers ask for additional reach without sacrificing stability or performance, we work hard to make it happen,” said Tony den Hoed, National Demolition Account Director, Volvo Construction Equipment. “The EC380E Straight Boom is a great example. Added reach while protecting operators means demolition contractors can now take on even more challenging jobs with total confidence.”

Factory-fit guarding packages help keep operators safe

When it comes to excavators designed with ultimate safety in mind, the EC380E is no exception. The cab is protected against falling debris with a frame-mounted Falling Objects Guard, and thanks to large windows with a wiper and washer, operators maintain excellent views of the worksite. The roof window and front one-piece glass are made from P5A, which is resistant to high impacts. Nighttime visibility is aided by standard LED lights on both the boom and platform, and additional lighting for the cabin and counterweight are available as options.

The EC380E Straight Boom comes with several useful standard features that are valuable in demolition applications, including X1 and X3 auxiliary piping, a quick-fit and oil drain line, and water lines connected to a dust suppression system.

The dust suppression system features a 7.9 gallons-per-minute (30 liters-per-minute) lifting pump, feeding water to four arm-based nozzles that together create a fine mist to contain dust. The system can work in either manual mode or auto mode, where water is only sprayed when the attachment is operating. The system also comes with a high-pressure water gun mounted behind the cab for cleaning the machine.

Operators can work confidently with a heavy tool at higher reach thanks to a 22,046 lb. (10,000 kg) counterweight that is hydraulically removable for easy machine transport.

Purpose-built for tough demolition

The EC380E Straight Boom has a heavily reinforced main frame made of heavy-duty plate steel with bolt-head protection. It also features heavy-duty (or eXtreme Duty) undercover protection, a durable belly guard and a full track guard. A slew ring cover and heavy-duty side doors with screens and louvres offer added protection. The bolt-on Side Impact Protection system protects the superstructure from damage. The machine is further guarded against damage from debris by additional protection on both bucket and boom cylinders. A reversible cooling fan ejects any debris stuck in the radiator, helping to keep the radiator clean and the engine running at optimal temperatures.

Like all Volvo excavators, the EC380E Straight Boom is backed by the Volvo Lifetime Frame and Structure Warranty, which covers the frame, boom and arm for the entire initial period of ownership. It is also eligible for a free year of ActiveCare Direct®, the 24/7/365 active machine monitoring and fleet utilization reporting service offered directly from Volvo.

Learn more about the Volvo EC380E Straight Boom at https://www.volvoce.com/united-states/en-us/products/high-reach-demolition-equipment/ec380e-straight-boom/.

Key specifications:

Operating weight

lbs.

83,335 – 94,799

kg

37,800 – 43,000

Gross power

hp

308

kW

230

. . . at engine speed

r/min.

1,700

Max. pin reach

ft. in.

35' 6"

mm

10,825

Max. pin height

ft.

39' 10”

mm

12,140

Max. pin depth

ft. in.

16' 9"

mm

5,095

Breakout force, SAE J1179 (Normal)

lbf

44,512

kN

198

Breakout force, SAE J1179 (Boost)

lbf

48,333

kN

215

Overall width

ft. in.

11' 7"

mm

3,540

Tail swing radius

ft. in.

12' 4"

mm

3,760



Based on machine configuration: boom 23 ft. (7.0 m), arm 12 ft. 10 in. (3.9 m), shoe 32 in. (800 mm), counterweight 22,046 lbs. (10,000 kg).
